Rod Ends Series K - Stainless - Maintenance-free

Series GARSW

Rod Ends with male thread and PTFE liner

For use at high dynamic pressure and tension loads in corrosive environments



  »  CAD Data

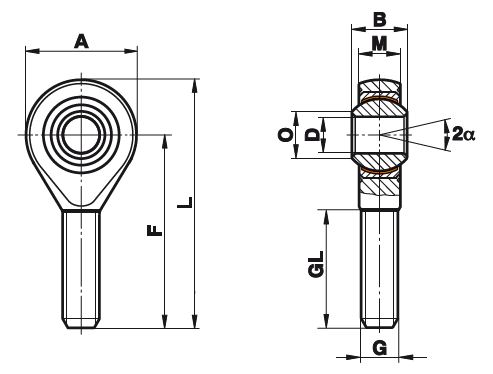

GARSW-Drawing
Size
(D H7)
B M A F L O G GL Static load
Co kN
Dynamic load
C kN
Limiting speed
rev/min
Pivoting Angle
α (°)
Weight
g
41) 7 5,25 14 30 37 6,5 M 4 19 2,5 5,1   14 9
5 8 6 18 33 42 7,7 M 5 20 6,2 7,5 600 13 13
6 9 6,75 20 36 46 8,9 M 6 22 8,8 9,3 530 13 20
8 12 9 24 42 54 10,4 M 8 25 16,1 16,7 420 14 33
10 14 10,5 28 48 62 12,9 M 10 29 25,5 23,4 350 13 56
12 16 12 32 54 70 15,4 M 12 33 34,5 32 300 13 87
14 19 13,5 36 60 78 16,8 M 14 38 39,5 42 260 16 129
16 21 15 42 66 87 19,3 M 16 40 60,5 52,5 230 15 189
18 23 16,5 46 72 95 21,8 M 18x1,5 44 73 64 210 15 267
20 25 18 50 78 103 24,3 M 20x1,5 47 83 78 190 14 348
22 28 20 54 84 111 25,8 M 22x1,5 51 100 97 170 15 443
25 31 22 60 94 124 29,6 M 24x2 57 118 122 150 15 600
30 37 25 70 110 145 34,8 M 30x2 71 155 168 130 17 1030
35 43 28 80 125 165 37,7 M 36x2 73 191 206 110 19 1600
40 49 35 90 142 187 44,2 M 42x2 78 235 286 100 16 2570



Materials:
Housing: Stainless steel to 1.4057, Aisi 431, forged, polished
  Size 40 turned from stainless steel to 1.4057, Aisi 431
Insert: Special high strength bronze to CuSn8 with PTFE liner bonded to the inner surface
Ball: Bearing steel to 100Cr6, Aisi 52100, hardened, ground, polished, hard chrome plated on the running surface
This series is also available on request in some sizes sealed (-2RS) or with threaded bolt (-BO).
1) Size 4 on request. Housing turned from stainless steel to 1.4305, Aisi 303

achtungneu

Please note: The dynamic load "C" of the bearing of some Rod Ends is in some sizes higher than the static load "Co" of the Rod End.
