Hydraulic Rod Ends - Weld-On Base
Series

FS..C

Rod Ends series E to
DIN ISO 12240-4,
type S with circular surface for weld-on.
Spherical Plain Bearings, regreasable, fixed through caulking on both sides







for Weld-on to piston Rod Ends

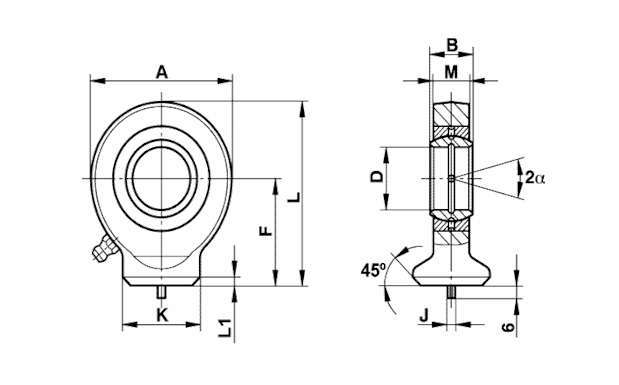

FS-C-Hydraulik-Zeichnung
Size
(D)
B M A F L L1 K J Static
load
Co  kN
Dynamic
load
C   kN
Pivoting
angle
α (°)
Weight
g
10 9 7 29 24 38,5 1,5 15 3 15,6 8,15 12 40
12 10 8 34 27 44 1,5 17,5 3 21,6 10,8 11 60
15 12 10 40 31 51 2 21 4 32 17 8 120
17 14 11 46 35 58 2 24 4 40 21,2 10 180
20 16 13 53 38 64,5 2 27,5 4 54 30 9 260
25 20 17 64 45 77 3 33,5 4 72 48 7 450
30 22 19 73 51 87,5 3 40 4 95 62 6 670
35 25 21 82 61 102 3 47 4 125 80 6 1020
40 28 23 92 69 115 4 52 4 156 100 7 1400
45 32 27 102 77 128 4 58 6 208 127 7 1930
50 35 30 112 88 144 40 62 6 250 156 6 2690
60 44 38 135 100 167,5 4 70 6 390 245 6 4600
70 49 42 160 115 195 5 80 6 510 315 6 7000
80 55 47 180 141 231 5 95 6 620 400 6 11000

Materials:

Housing: St 52-3, forged
Bearing: Steel on steel bearing GE...E, requiring lubrication
  On request: available with maintenance free Spherical Plain Bearing GE..EC
  or in sizes 12, 20, 25, 40, 50, 70, 80 with Spherical Plain Bearing GE...LO, requiring lubrication
Greasing: up to size 12 without lubrication fitting
  from size 15-20 fitted with grease hole in housing
  from size 25 fitted with hydraulic grease nipples to DIN 71412
On request: Housing: Stainless steel to 1.4301, Aisi 304, size up to 40: forged,
  Bearing: sizes 10 to 80 are available in stainless steel maintenance free GE…EC-NIRO
