| Spherical Plain Bearings Series K - Stainless outer ring |
Series GLRS
Spherical Plain Bearings, regreasable
» CAD Data |
 |

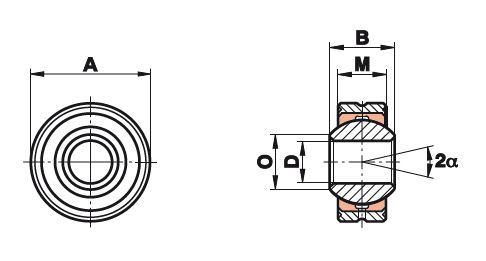

| Size (D H7) |
B | M | A (h6) |
O | dK | Static load Co kN |
Dynamic load C kN |
Limiting speed rev/min |
Pivoting Angle α (°) |
Weight g |
|
| 031),2) |
6 | 4,5 | 12 | 5,1 | 7,94 | 10,8 | 1,8 |  |
14 | 5 | |
| 05 | 8 | 6 | 16 | 7,7 | 11,11 | 19,8 | 3,3 | 1200 | 13 | 8 | |
| 06 | 9 | 6,75 | 18 | 8,9 | 12,7 | 25,8 | 4,3 | 1500 | 13 | 12 | |
| 08 | 12 | 9 | 24 | 10,4 | 15,87 | 42,6 | 7,1 | 1200 | 14 | 23 | |
| 10 | 14 | 10,5 | 26 | 12,9 | 19,05 | 60 | 10 | 1000 | 13 | 38 | |
| 12 | 16 | 12 | 30 | 15,4 | 22,22 | 80 | 13,5 | 860 | 13 | 58 | |
| 14 | 19 | 13,5 | 34 | 16,8 | 25,4 | 102,5 | 17 | 750 | 16 | 83 | |
| 16 | 21 | 15 | 38 | 19,3 | 28,57 | 128,5 | 21,5 | 660 | 15 | 115 | |
| 18 | 23 | 16,5 | 42 | 21,8 | 31,75 | 157 | 26 | 600 | 15 | 150 | |
| 20 | 25 | 18 | 46 | 24,3 | 34,92 | 188,5 | 31,5 | 540 | 14 | 200 | |
| 22 | 28 | 20 | 50 | 25,8 | 38,1 | 229 | 38 | 500 | 15 | 270 | |
| 25 | 31 | 22 | 56 | 29,6 | 42,86 | 293 | 47 | 440 | 15 | 375 | |
| 30 | 37 | 25 | 66 | 34,8 | 50,8 | 381 | 64 | 370 | 17 | 540 | |
| 35 | 43 | 28 | 78 | 37,7 | 57,15 | 480 | 80 | 330 | 19 | 850 | |
| 40 | 49 | 35 | 87 | 44,2 | 45,96 | 693 | 116 | 290 | 16 | 1400 | |
| Materials: | |
| Outer ring: | Stainless steel to 1.4305, Aisi 303, turned |
| Insert: | Special high strength bronze to CuSn8 |
| Ball: | Bearing steel to 100Cr6, Aisi 52100, hardened, ground, polished, hard chrome plated on the running surface |
| This series is also available with threaded bolt (-BO) |
|
| 1) Without lubrication hole | |
| 2) Outer Ring as one piece to CuSn8 | |
