| Spherical Plain Bearings Series K - Maintenance Free |
Series
GXSW

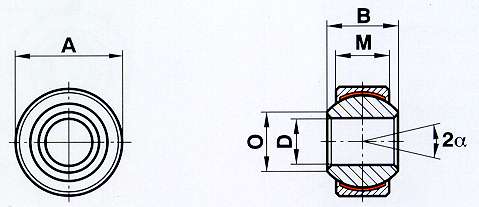

Spherical Plain Bearings, without outer ring, maintenance free
For use at high pressure and dynamic loads |
 |
Size
(D) |
D |
B |
M |
A |
O |
Static
load Co
kN |
Dynamic
load CÂ Â
kN |
Limiting
speed
rev/min |
Weight
g |
| 4 |
4 |
7 |
5,25 |
12,0 |
6,5 |
8,5 |
5,1 |
700 |
 |
4 |
| 5 |
5 |
8 |
6,00 |
13,0 |
7,7 |
12,5 |
7,5 |
600 |
6 |
| 6 |
6 |
9 |
6,75 |
15,0 |
8,9 |
15,5 |
9,3 |
530 |
8 |
| 6.16 |
6 |
9 |
6,75 |
16,0 |
8,9 |
15,5 |
9,3 |
530 |
9 |
| 8 |
8 |
12 |
9,00 |
18,0 |
10,4 |
27,8 |
16,7 |
420 |
15 |
| 8.19 |
8 |
12 |
9,00 |
19,0 |
10,4 |
27,8 |
16,7 |
420 |
17 |
| 10 |
10 |
14 |
10,50 |
21,0 |
12,9 |
39,0 |
23,4 |
350 |
23 |
| 10.22 |
10 |
14 |
10,50 |
22,0 |
12,9 |
39,0 |
23,4 |
350 |
26 |
| 12 |
12 |
16 |
12,00 |
24,5 |
15,4 |
53,5 |
32,0 |
300 |
35 |
| 12.26 |
12 |
16 |
12,00 |
26,0 |
15,4 |
53,5 |
32,0 |
300 |
41 |
| 14 |
14 |
19 |
13,50 |
28,0 |
16,8 |
70,0 |
42,0 |
260 |
52 |
| 14.29 |
14 |
19 |
13,50 |
29,0 |
16,8 |
70,0 |
42,0 |
260 |
56 |
| 16 |
16 |
21 |
15,00 |
31,5 |
19,3 |
88,0 |
52,5 |
230 |
72 |
| 16.32 |
16 |
21 |
15,00 |
32,0 |
19,3 |
88,0 |
52,5 |
230 |
75 |
| 18 |
18 |
23 |
16,50 |
34,5 |
21,8 |
106,5 |
64,0 |
210 |
95 |
| 18.35 |
18 |
23 |
16,50 |
35,0 |
21,8 |
106,5 |
64,0 |
210 |
97 |
| 20 |
20 |
25 |
18,00 |
38,0 |
24,3 |
130,0 |
78,0 |
190 |
127 |
| 20.40 |
20 |
25 |
18,00 |
40,0 |
24,3 |
130,0 |
78,0 |
190 |
142 |
| 22 |
22 |
28 |
20,00 |
41,0 |
25,8 |
162,0 |
97,0 |
170 |
159 |
| 22.42 |
22 |
28 |
20,00 |
42,0 |
25,8 |
162,0 |
97,0 |
170 |
169 |
| 25 |
25 |
31 |
22,00 |
46,0 |
29,6 |
204,0 |
122,0 |
150 |
222 |
| 25.47 |
25 |
31 |
22,00 |
47,0 |
29,6 |
204,0 |
122,0 |
150 |
230 |
| 30 |
30 |
37 |
25,00 |
54,0 |
34,8 |
281,0 |
168,0 |
130 |
350 |
| 30.55 |
30 |
37 |
25,00 |
55,0 |
34,8 |
281,0 |
168,0 |
130 |
369 |
| 35 |
35 |
43 |
28,00 |
62,0 |
37,7 |
343,0 |
206,0 |
110 |
505 |
| 35.65 |
35 |
43 |
28,00 |
65,0 |
37,7 |
343,0 |
206,0 |
110 |
545 |
| 40 |
40 |
49 |
35,00 |
72,0 |
44,2 |
495,0 |
286,0 |
100 |
832 |
| 40.75 |
40 |
49 |
35,00 |
75,0 |
44,2 |
495,0 |
286,0 |
100 |
894 |
| 50 |
50 |
60 |
45,00 |
90,0 |
55,9 |
800,0 |
485,0 |
80 |
1640 |
Materials:
| Insert: |
free-cutting steel to 9SMnPb28K, 12L13, with PTFE liner bonded to inner surface |
| Ball: |
bearing steel to 100Cr6, Aisi 52100, hardened, ground, polished |
| This series is also available with threaded bolt (-BO) and as stainless steel version. |
|
|
