Rod Ends Series E  -  Steel/Seel
Series EA (-2RS)
Rod Ends Series E with male thread made from free cutting or heat-treated steel, zinc plated, with steel on steel Spherical Plain Bearings which require lubrication






For use at high multi-directional loads and limited fitting dimensions

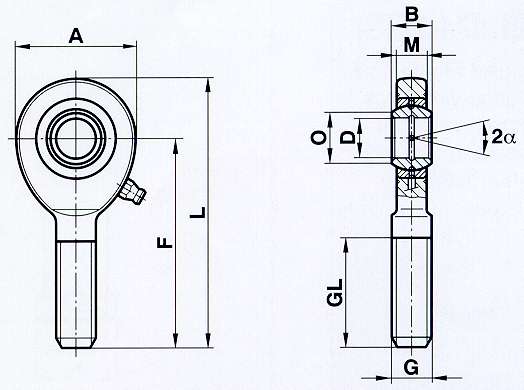

Size
(D)		 B M A F L O G GL Static
load Co kN		 Dynamic
load C
kN		 Pivoting
angle
 α 		Weight
g
6 6 4,4 20 36 46,0 8,0 M 6 18 6,9 3,4 13 16
8 8 6,0 24 42 54,0 10,2 M 8 22 12,7 5,5 15 28
10 9 7,0 28 48 62,0 13,2 M 10 26 19,9 8,1 12 50
12 10 8,0 34 54 71,0 14,9 M 12 28 29,0 10,8 11 86
15 12 10,0 40 63 83,0 18,4 M 14 34 39,5 17,0 8 140
16 14 11,0 46 69 92,0 20,7 M 16 36 54,0 21,2 10 190
17 14 11,0 46 69 92,0 20,7 M 16 36 54,0 21,2 10 190
20 16 13,0 53 78 104,5 24,2 M 20x1,5 43 62,5 30,0 9 320
25 20 17,0 64 94 126,0 29,3 M 24x2 53 92,0 48,0 7 560
30 22 19,0 73 110 146,5 34,2 M 30x2 65 124,0 62,0 6 890
35 25 21,0 82 140 181,0 39,8 M 36x3 82 144,0 80,0 6 1400
40 28 23,0 92 150 196,0 45,0 M 39x3 86 178,0 100,0 7 1800
45 32 27,0 102 163 214,0 50,8 M 42x3 94 263,0 127,0 7 2610
50 35 30,0 112 185 241,0 56,0 M 45x3 107 320,0 156,0 6 3450
60 44 38,0 135 210 277,5 66,8 M 52x3 115 497,0 245,0 6 5900
70 49 42,0 160 235 315,0 77,9 M 56x4 125 566,0 315,0 6 8200
80 55 47,0 180 270 360,0 89,4 M 64x4 140 752,0 400,0 6 12000

Materials:

Housing: up to size 10 turned, from free-cutting steel to 9SMnPb28K, 12L13
from size 12 forged from heat-treated steel to C45, Aisi 1045
Bearing: steel on steel bearing GE...E, requiring lubrication
from size 20 available sealed from both sides (-2RS)
Greasing: up to size 17 without lubrication fitting
from size 20 fitted with hydraulic grease nipples to DIN 71412
