Rod Ends Series E  -  Steel on Steel
Series EI (-2RS)

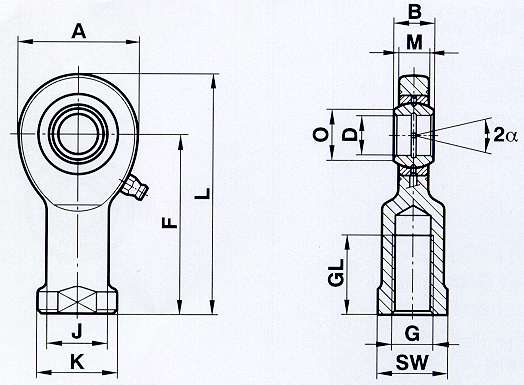

Rod Ends with female thread made from steel and c-steel, zinc plated, with steel on steel. Spherical Plain Bearings which require lubrication







For use at high multidirectional loads and limited fitting dimensions

Size
(D)
B M A F L K J O SW G GL Static
load  Co  kN
Dynamic
load C kN
Pivoting
angle
α
Weight
g
6 6 4,4 21 30 40,0 13 10,0 8,0 11 M 6 12 10,3 3,4 13 21
8 8 6,0 24 36 48,0 16 12,5 10,2 14 M 8 16 15,8 5,5 15 38
10 9 7,0 29 43 57,0 19 15,0 13,2 17 M 10 20 23,4 8,1 12 60
12 10 8,0 34 50 67,0 22 17,5 14,9 19 M 12 23 31,0 10,8 11 96
15 12 10,0 40 61 81,0 26 21,0 18,4 22 M 14 29 42,5 17,0 8 180
16 14 11,0 46 67 90,0 30 24,0 20,7 27 M 16 33 54,5 21,2 10 220
17 14 11,0 46 67 90,0 30 24,0 20,7 27 M 16 33 54,5 21,2 10 220
20 16 13,0 53 77 103,5 35 27,5 24,2 32 M 20x1,5 40 62,5 30,0 9 350
25 20 17,0 64 94 126,0 42 33,5 29,3 36 M 24x2 48 92,0 48,0 7 640
30 22 19,0 73 110 146,5 50 40,0 34,2 41 M 30x2 56 124,0 62,0 6 930
35 25 21,0 82 125 166,0 58 47,0 39,8 50 M 36x3 60 144,0 80,0 6 1300
40 28 23,0 92 142 188,0 65 52,0 45,0 55 M 39x3 65 178,0 100,0 7 2000
45 32 27,0 102 145 196,0 70 58,0 50,8 60 M 42x3 65 240,0 127,0 7 2500
50 35 30,0 112 160 216,0 75 62,0 56,0 65 M 45x3 68 290,0 156,0 6 3500
60 44 38,0 135 175 242,5 88 70,0 66,8 75 M 52x3 70 450,0 245,0 6 5550
70 49 42,0 160 200 280,0 98 80,0 77,9 85 M 56x4 80 610,0 315,0 6 8600
80 55 47,0 180 230 320,0 110 95,0 89,4 100 M 64x4 85 695,0 400,0 6 12000

Materials:

Housing: up to size 10 steel, turned, galvanised
from size 12 c-steel forged, galvanised
Bearing: steel on steel bearing GE...E, requiring lubrication
from size 20 available sealed from both sides (-2RS)
Greasing: up to size 17 without lubrication fitting
from size 20 with hydraulic grease nippel DIN 71412
