Hydraulic - Rod Ends
Series

FMA...D

Rod Ends fastened by hexagon socket head cap screws to
DIN 912-8.8.
Spherical Plain Bearings, regreasable, fixed with snap rings








For use with double action hydraulic cylinders

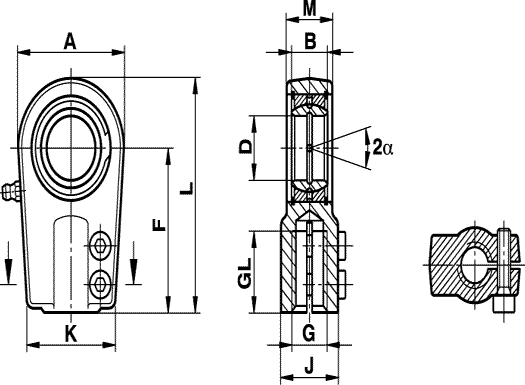

Size
(D)
B M A F L K J G GL Torque
Nm
Static
load
Co  kN
Dynamic
load
C   kN
Pivoting
angle
α
Weight
g
25 20 23 56 65 95 48 28 M 18 x 2 30 20 76 48,0 8 650
30 22 28 64 75 109 55 34 M 24 x 2 35 20 112 62,0 7 1000
35 25 30 78 90 132 70 44 M 30 x 2 45 40 180 80,0 7 1300
40 28 35 94 105 155 78 55 M 39 x 3 55 80 295 100,0 7 2400
50 35 40 116 135 198 88 70 M 50 x 3 75 80 445 156,0 7 4100
60 44 50 130 170 240 118 87 M 64 x 3 95 160 530 245,0 7 6500
70 49 55 154 195 278 138 105 M 80 x 3 110 160 720 315,0 6 9500
80 55 60 176 210 305 168 125 M 90 x 3 120 300 890 400,0 6 16000
90 60 65 206 250 363 180 150 M 100 x 3 140 300 1300 490,0 5 28000
100 70 70 230 275 400 188 170 M 110 x 4 150 300 1490 610,0 7 34000

Materials:

Housing: nodular cast iron GS400
Bearing: steel on steel bearing GE...E, requiring lubrication
Greasing: size 25 without lubrication fitting, but fitted with grease hole in the housing
  from size 30 fitted with hydraulic grease nipples to DIN 71412
On request:            with left hand thread (FMAL...D)
