Spherical Plain Bearings Series C

Series

GE..CW

GE..CW-2RS

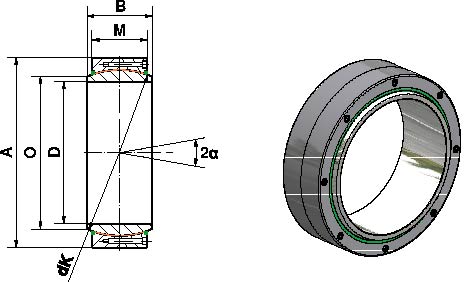

Spherical plain bearings series C.
DIN ISO 12240-1,

mating surface hard chrome/FLUROGLIDE, maintenance free




For use with high unidirectinally/ variably acting loads

gecw 2rs
SERIE GE..CW
Size
(D)
B M A O dK Static load ratings Co    kN Dynamic load ratings
C   kN
Tilting angle
α
Weight
kg
320 0
-0,040
160 135 0
-0,90
440 0
-0,045
344,6 380 25.480 15.290 4,0 76,0
340 0
-0,040
160 135 0
-0,90
460 0
-0,045


366,6

400 26.830 16.095 3,8 80,0
360 0
-0,040
160 135 0
-0,90
480 0
-0,045
388,3 420 28.170 16.900 3,6 86,0
380 0
-0,040
190 160 0
-1,0
520 0
-0,050
407,9 450 35.795 21.475 4,1 124,5
400 0
-0,040
190 160 0
-1,0
540 0
-0,050
429,8 470 37.385 22.430 3,9 131,0



SERIES GE..CW2RS

Size
(D)
B M A O dK Static load ratings
 Co   kN
Dynamic load ratings
C   kN
Tilting angle
α
Weight
kg
320 0
      -0,040
160 135 0
-0,90
440 0
      -0,045
344,6 380 21.420 12.850 4,0 76,0
340 0
      -0,040
160 135 0
-0,90
 460 0
      -0,045
366,6 400 22.550 13.530 3,8 80,0
360 0
      -0,040
160 135 0
-0,90
480 0
      -0,045
388,3 420 23.675 14.205 3,6 86,0
380 0
      -0,040
190 160 0
-1,0
520 0
      -0,050
407,9 450 30.980 18.590 4,1 124,5
400 0
      -0,040
190 160 0
-1,0
540 0
      -0,050
429,8 470 32.370 19.415 3,9 131,0





achtungneuPlease note: The screw design is dimensioned only for the dynamic load rating C! In case of higher loads, the outer ring halves musr be secured by constructional measures (e.g. clamshell cover).


Materials:

Outer ring:
Quenched and tempered steel, with FLUROGLIDE bonded to the inner surface

Inner ring:
Bearing steel 100CrMn6, hardened, ground, polished, hard chrome plated
